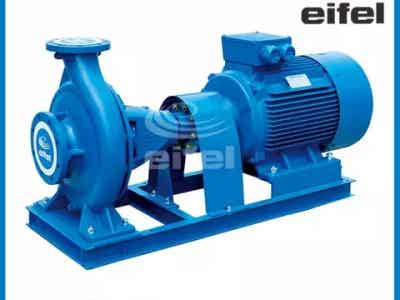

EAD系列型泵是卧式、轴向端吸、径向排出、单级单吸离心泵泵组，泵结构为后开式结构，拆开泵盖和叶轮时不需拆卸吸水和排出管路，悬架内装有两个球轴承（H型结构有一个双列向心推力轴承），泵通过弹性柱销联轴器由电机直接驱动（其他连接和驱动方式可以按照用户具体情况而定）。涡室、底脚、进水法兰和出水法兰铸成一体。
适用于输送清水及物理化学性质类似于水的介质，介质温度-10℃~85℃(105℃)，液体动力黏度系数应小于150cSt（大于20cSt时性能需要修正）；颗粒度小于3mm的悬浮液也可抽吸，但会磨蚀相关部件，影响泵的寿命。
本泵结构简单，性能可靠，体积小，重量轻，抗汽蚀性能好，能耗低，使用维修方便.
High Quality Horizontal Single-stage Water Pump Set
Product Description
| Pump type |
EAD series direct-coupled single stage end suction centrifugal pump with motor |
| Design Standard | European standard BS EN733/DIN24255 |
| Structure | Direct-coupled,Axial End-Suction,Single-Stage,Volute Casing,Back pull-out |
| Discharge Size | DN32~300mm |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 |
| Motor | IEC standard motor |
| Casing | Cast Iron standard,Ductile Iron/ASTM304/ASTM316 options on request |
| Impeller | Brass standard,Cast Iron/ASTM304/ASTM316 options on request |
| Shaft | ASTM420 standard,ASTM304/ASTM316/ASTM1045 options on request |
| Shaft Seal | Mechanical Seal standard,Gland Packing options on request |
| Flow Rate(Q) | 4~1584m3/h |
| Head(H) | 2~150m |
| Speed | 1450/2900rpm(50Hz);1750/3500 rpm(60Hz) |
| Max Temperature | 85°C(standard);105°C(option on request) |
| Working Pressure | 1.0MPa(standard);1.6MPa(option on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Advantage | Interchangeable parts,high effective,high performance,voice-saving, easily installed and maintained |
| Applications | Water supply and drainage,HVAC and Cooling Tower,booster and pressurization set,irrigation and agriculture,fire-fighting system,plants,mines,marine-ballasting&bilge,food and chemical industry(with stainless steel),etc. |
