ESD系列蜗壳轴向中开双吸泵泵组是根据GB/T5657-95和Q/ FZEF 001—2014开发设计的新一代双吸泵产品。泵具有性能范围广、效率高、结构紧凑，重量轻、强度刚度好、立卧两用等优点， 供吸送清水及物理化学性质类似于水的液体。广泛应用于自水厂、空调循环用水、建筑供水、灌溉、排水泵站、电站、工业供水系统、消防系统、船舶工业等输送液体的场合。

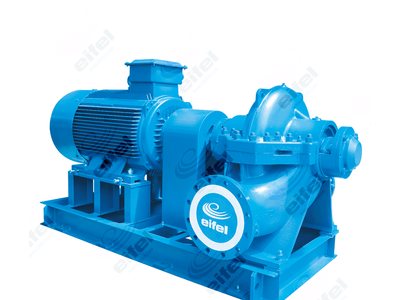

Wholesale Hot Recommend Single Stage Washer Pump
Product Description
| Pump type | ESD series direct-coupled single stage double suction split casing pump |
| Design Standard | GB/T5657-95,Q/FZEF 001-2014 Standard |
| Structure | Single-Stage,Double-Suction,Split-Casing |
| Discharge Size | DN80~400mm |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 |
| Motor | IEC standard motor |
| Casing | Cast Iron standard,Ductile Iron options on request |
| Impeller | Brass standard,Cast Iron options on request |
| Shaft | ASTM1045 standard,ASTM304/ASTM316/ASTM420 options on request |
| Shaft Seal | Mechanical Seal standard,Gland Packing options on request |
| Flow Rate(Q) | 36~3400m3/h |
| Head(H) | 8~190m |
| Speed | 1480/2980rpm(50Hz);1780/3580 rpm(60Hz) |
| Max Temperature | 85°C(standard);105°C(option on request) |
| Working Pressure | 1.6MPa(standard);2.5MPa(option on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Advantage | High flow rate,high efficiency,stable operation,low noise and long service life,easy to install and maintain. |
| Applications | HVAC and Cooling Tower,municipal water supply,pump station,marine and ship building,power plant/water plant,industrial water supply system,fire fighting system,etc. |
