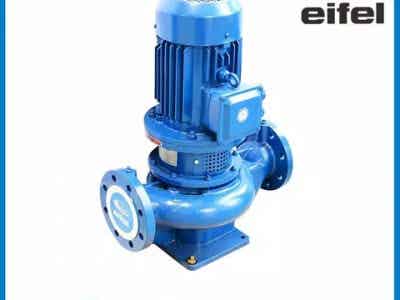

EGM系列是立式直联、单级单吸管道离心泵，泵结构为上部开式结构，检修时可从顶部抽出泵转子部件，不需拆卸进出口管路。泵的进出口位于同一水平线上且进出口口径一致，可直接像阀门一样安装在管路的任何部位，该系列产品结构简单，机泵采用穿轴式连接，且水泵有独立的轴承支撑，机泵同心度高，机组运行噪音小，稳定可靠、效率高；维护方便，易拆易装，定位精确可靠等优点。
适用于输送清水及物理化学性质类似于水的介质，介质温度：-10℃~85℃，液体运动粘度应小于20cSt（大于20cSt时性能需要修正）且不含有任何可能对泵造成机械或化学侵害的固体颗粒或纤维液体。
环境温度：环境温度不得超过40℃；超过40℃，电机应降低功率使用。
Product Description
| Pump type | EG series vertical single stage in-line centrifugal pump |
| Design Standard | European standard BS EN733/DIN24255 |
| Structure | Vertical,Single-Stage,Single-Suction,Volute Casing,In-line,Close-coupled |
| Discharge Size | DN40~200mm |
| Flange | DIN2501 PN16 GB/T17241.6 PN1.6 |
| Motor | IEC standard motor |
| Casing | Cast Iron standard,Ductile Iron options on request |
| Impeller | Brass standard,Cast Iron/ASTM304/ASTM316 options on request |
| Shaft | ASTM420 standard,ASTM304/ASTM316/ASTM1045 options on request |
| Shaft Seal | Mechanical Seal standard |
| Flow Rate(Q) | 4~500m3/h |
| Head(H) | 8~150m |
| Speed | 1450/2900rpm(50Hz),1750/3500 rpm(60Hz) |
| Max Temperature | 85°C(standard) |
| Working Pressure | 1.0MPa standard;1.6MPa(option on request) |
| Conveying Medium | Clean water or liquids similar to clean water in physical property |
| Advantage | sharply reduce installation space,motor shaft is pluged into pump shaft to ensure alignment of pump and motor,voice-saving,high-effective. |
| Appliactions | Cold and hot water circulation pump,municipal water supply,HVAC and Cooling Tower,booster pump,irrigation and agriculture,pool and fountain water transfer,etc. |
